布羅波爾(52-51-7)紅外圖譜(IR2)
分子式:C3H6BrNO4
分子量: 199.99
InChI:InChI=1S/C3H6BrNO4/c4-3(1-6,2-7)5(8)9/h6-7H,1-2H2
InChIKey: LVDKZNITIUWNER-UHFFFAOYSA-N
Smiles:C(O)C(Br)([N+]([O-])=O)CO
-

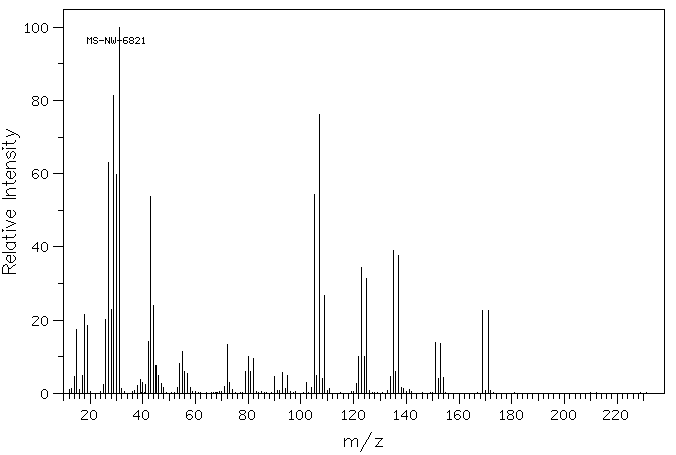

Mass
MS-NW-6821
2-bromo-2-nitro-1,3-propanediol
C3H6BrNO4 (Mass of molecular ion: 199)
Source Temperature: 280 °C
Sample Temperature: 190 °C
Reservoir, 75 eV
12.0 1.1
13.0 1.3
14.0 4.6
15.0 17.4
16.0 1.0
17.0 5.0
18.0 21.5
19.0 18.6
25.0 2.3
26.0 20.2
27.0 63.0
28.0 22.8
29.0 81.5
30.0 59.8
31.0 100.0
32.0 1.2
38.0 2.2
39.0 3.9
40.0 3.0
41.0 2.4
42.0 14.3
43.0 53.9
44.0 24.1
45.0 7.7
46.0 5.0
47.0 2.6
48.0 1.7
53.0 1.6
54.0 8.2
55.0 11.3
56.0 6.0
57.0 5.4
58.0 1.5
71.0 1.8
72.0 13.4
73.0 3.1
74.0 1.1
79.0 6.0
80.0 10.2
81.0 6.1
82.0 9.6
90.0 4.7
93.0 5.6
94.0 1.3
95.0 5.0
102.0 2.9
104.0 1.6
105.0 54.2
106.0 5.0
107.0 76.2
108.0 4.1
109.0 26.8
111.0 1.2
121.0 2.6
122.0 10.1
123.0 34.3
124.0 10.2
125.0 31.5
134.0 4.7
135.0 39.1
136.0 6.0
137.0 37.8
138.0 1.5
139.0 1.3
141.0 1.1
151.0 13.9
152.0 4.1
153.0 13.7
154.0 4.2
169.0 22.7
171.0 22.6
