ChemicalBook
English   Japanese   Germany   Korea

100-39-0

溴化芐(100-39-0)核磁圖(1HNMR)

產(chǎn)品名稱:溴化芐

CAS:100-39-0

分子式:C7H7Br

分子量: 171.03

InChI:InChI=1S/C7H7Br/c8-6-7-4-2-1-3-5-7/h1-5H,6H2

InChIKey: AGEZXYOZHKGVCM-UHFFFAOYSA-N

Smiles:C1(CBr)=CC=CC=C1

  • 圖譜

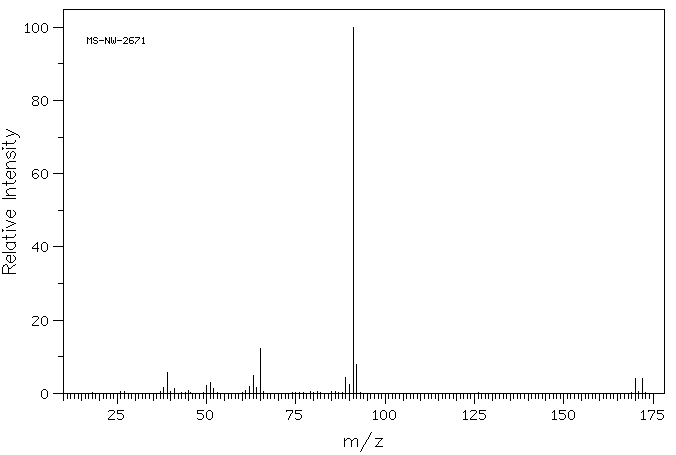

    Mass

    MS-NW-2671
benzyl bromide
C7H7Br              (Mass of molecular ion:    170)


       Source Temperature: 270 °C
   Sample Temperature: 180 °C
   Reservoir, 75 eV


          38.0       1.5
      39.0       5.6
      41.0       1.3
      50.0       2.1
      51.0       3.1
      52.0       1.4
      62.0       1.8
      63.0       5.0
      64.0       1.6
      65.0      12.2
      89.0       4.3
      90.0       2.5
      91.0     100.0
      92.0       8.0
     170.0       4.1
     172.0       4.0

90 MHz in CDCl3

  • 圖譜

    1H NMR 89.56 MHz
    C7 H7 Br 0.05 ml : 0.5 ml CDCl3
    benzyl bromide
    ChemicalStructure
        Assign.     Shift(ppm)

      A          7.51 to 7.09
      B             4.440


         Hz     ppm     Int.


        664.06   7.415     23
    662.00   7.392     52
    660.63   7.377     34
    658.75   7.356     50
    657.06   7.337    203
    655.38   7.318    498
    654.25   7.306    522
    653.88   7.302    518
    651.19   7.271    174
    649.31   7.251    100
    648.00   7.236     32
    646.56   7.220     57
    641.06   7.158     23
    397.63   4.440   1000

in CDCl3

  • 圖譜

liquid film

  • 圖譜

  • 圖譜

×
