基于液滴的微流體技術是一種新興的強大工具，適用于dPCR或單細胞分析等生物應用。作為微反應器的液滴，可以在微流控芯片中產生，具有非常高的吞吐量，可在較短的時間內進行大量的平行實驗。

氟化油通常用作這類應用的連續相，因?yàn)槠淠軌蛉芙夂洼斔脱鯕猓⑶也蝗芙獯蠖鄶?shù)化學和生化化學物。

FluoSurf 是一種生物相容性氟化表面活性劑，專為生產單分散油包水液滴而設計和優化。FluoSurf 可確保液滴的長期穩定性（即使在極端條件下也是如此）。

優勢

● 穩定性

   即使在dPCR或長期細胞培養實驗等具有挑戰性的條件下，也能實現單分散液滴群體和低液滴融合。

● 生物相容性

   經細胞檢測驗證的生物相容性，適用于生物實體。

● 批量生產

   我們的大批量生產能力使我們能夠滿足您的所有需求

● 較高純度

   在制造加工過程中去除雜質

● 泄露控制：液滴內的分散相物質較少量的滲透到液滴外部

● 批次間重現性

   每個批次都遵循嚴格的質量控制分析，通過驗證結構和微流體性能來確保一致性。

FluoSurf 在高溫處理（例如PCR的加熱循環）后仍保證液滴穩定性和群體單分散性。

應用領域

● 數字液滴PCR

   基于對液滴內大量分隔PCR反應的統計分析的超靈敏核酸定量方法

● 單細胞分析

   在受控環境下處理和分析單分散液滴群體中的分離細胞

● 篩選

   在微滴內以高通量對細胞、基因或生物大分子進行受控操作、分析和分選。

● 合成生物學

   使用微液滴作為細胞大小的隔間來模擬代謝反應。

● 控制化學和生物反應

   微流體工具專門設計用于增強對封裝在液滴內的反應的控制。

規格參數

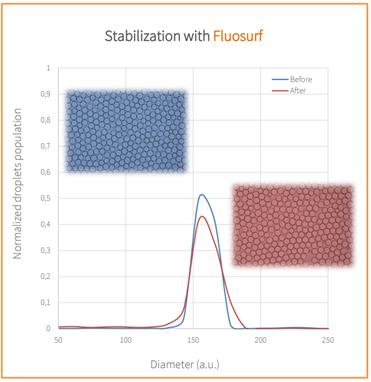

案例1: 液滴產生和熱循環對尺寸分布的影響

實驗條件：氟油流速為5μL/min，水相流速為1.66μL/min。

4w/w%表面活性劑HFE7500

熱循環條件：30個循環

95℃駐留30s

55℃駐留1min

72℃駐留5min

40℃駐留1min

熱循環前

熱循環后

FluoSurf在熱循環期間允許液滴具有良好的穩定性

使用FluoSurf表面活性劑，熱循環對液滴尺寸分布的影響十分有限。

案例2：保留性能

熒光素100μM的全/空液滴平均強度的演變

FluoSurf限制液滴之間的交換（4天后少于10%的熒光素交換）

部分參考文獻

Production of Photonic Supraballs Composed of Single-Crystalline Colloidal Arrays through Osmosis-Induced Consolidation ACS Publications : Ye Hun Choi and Shin-Hyun Kim (2023)

Selectable encapsulated cell quantity in droplets via label-free electrical screening and impedance-activated sorting   Science Direct: JianweiZhong, Minhui Liang, QiangTang, Ye Ai (2023)

Evaluation of Analyte Transfer between Microfluidic Droplets by Mass Spectrometry  ACS Publications: Emory M. Payne, Maryam Taraji, Bridget E. Murray, Daniel A. Holland-Moritz, Jeffrey C. Moore, Paul R. Haddad, and Robert T. Kennedy (2023)

Programmable Control of Nanoliter Droplet Arrays Using Membrane Displacement Traps  Advanced Materials Technologies:

Jason Harriot, Michael Yeh, Mani Pabba, and Don L. DeVoe (2023)

Machine learning enhanced droplet microfluidics   AIP Publishing:

Claire Barnes, Ashish R. Sonwane, Eva C. Sonnenschein, Francesco Del Giudice (2023)

Generation of embryo-like structures from mouse embryonic stem cells treated with a chemical inhibitor of SUMOylation and cultured in microdroplets  Science Direct: TatianaTraboulsi, Sébastien Sart, Charles N. Baroud, Anne Dejean, Jack-Christophe Cossec(2023)

Physicochemical Properties Predict Retention of Antibiotics in Water-in-Oil Droplets  ACS Publications: ArturRuszczak, Pawe?Jankowski, Shreyas K. Vasantham, Ott Scheler, Piotr Garstecki(2023)

Single Hydrogel Particle Mechanics and Dynamics Studied by Combining Capillary Micromechanics with Osmotic Compression   MDPI: KalpitJ. Bakal, Andreas M. A. O. Pollet, Jaap M. J. den Toonderand Hans M. Wyss (2023)

Nanodroplet-based reagent delivery into water-in-fluorinated-oil dropletsBoZhu, Zhe Du, Yancen Dai, Tetsuya Kitaguchi, Sebastian Behrens, BurckhardSeelig (2023)

Silicon chambers for enhanced incubation and imaging of microfluidic droplets  Lab On a Chip: Nicolas Lobato-Dauzier, Robin Deteix, Guillaume Gines, Alexandre Baccouche,Benediktus Nixon Hapsianto, Shu Okumura, Guilhem Mariette, DjaffarBelharet, Samuel Queste, Laurent Jalabert, Matthieu Denoual, Yannick Rondelez, Hiroshi Toshiyoshi, Hiroyuki Fujita, Soo Hyeon Kim, TeruoFujii and Anthony J. Genot(2023)

Evolution of Organic Solvent-Resistant DNA Polymerases   ACS Publications: Mohammed Elias, Xiangying Guan, Devin Hudson, Rahul Bose, Joon Kwak, Ioanna Petrounia, KenzaTouah, Sourour Mansour, Peng Yue, Gauthier Errasti, Thomas Delacroix, Anisha Ghosh, and Raj Chakrabarti (2023)

Cell Microencapsulation within Gelatin-PEG Microgels Using a Simple Pipet Tip-Based Device   ACS Publications:

Thuy P. T. Nguyen, Fanyi Li, Brendan Hung, Vinh Xuan Truong, Helmut Thissen, John S. Forsythe, and Jessica E. Frith (2023)

Physicochemical Properties Predict Retention of Antibiotics in Water-in-Oil Droplets, ACS Publications: Artur Ruszczak, Pawe?Jankowski, Shreyas K. Vasantham, Ott Scheler, Piotr Garstecki(2023)

High-Throughput Spherical Supraparticle Self-Assembly by Enhanced Evaporation of Colloidal Water Droplets Through Thin Film of Water-Soluble Oil, IEEE Xplore: Wonhyung Lee,JoowonRhee, Joonwon Kim (2023)

Single Hydrogel Particle Mechanics and Dynamics Studied by Combining Capillary Micromechanics with Osmotic Compression, MDPI: Kalpit J. Bakal, Andreas M. A. O. Pollet, Jaap M. J. den Toonder and Hans M. Wyss (2023)

Nanodroplet-based reagent delivery into water-in-fluorinated-oil droplets, Bo Zhu, Zhe Du, Yancen Dai, Tetsuya Kitaguchi, Sebastian Behrens, BurckhardSeelig (2023)

Selectable encapsulated cell quantity in droplets via label-free electrical screening and impedance-activated sorting, Science Direct: JianweiZhong, MinhuiLiang, QiangTang, Ye Ai (2023)

Evaluation of Analyte Transfer between Microfluidic Droplets by Mass Spectrometry, ACS Publications: Emory M. Payne, Maryam Taraji, Bridget E. Murray, Daniel A. Holland-Moritz, Jeffrey C. Moore, Paul R. Haddad, and Robert T. Kennedy (2023)

Measuring single-cell susceptibility 2 to antibiotics within monoclonal 3 bacterial populations, BioRxiv: Lena Le Quellec, Andrey Aristov , Salomé Gutiérrez Ramos, Gabriel Amselem, Julia Bos, Zeynep Baharoglu, Didier Mazel, Charles N. Baroud (2023)

Ultrahigh-Throughput Enzyme Engineering and Discovery in In Vitro Compartments, ACS Publications: Maximilian Gantz, StefanieNeun, Elliot J. Medcalf, Liisa D. van Vliet, Florian Hollfelder (2023)

M. Sesen, C. J. Rowlands. Thermally-actuated microfluidic membrane valve for point-of-care applications, Microsystems & Nanoengineering, 2021, 7:48.

M. Girault, R. Siano, C. Labry, M. Latimier, C. Jauzein, T. Beneyton, L. Buisson, Y. Del Amo, J-C. Baret. Variable inter and intraspecies alkaline phosphatase activity within single cells of revivied dinoflagellates. ISME J, 2021.

H. Yang, Y. Wei, B. Fan, L. Liu, T. Zhang, D. Chen, J. Wang, J. Chen. A droplet-based microfluidic flow cytometry enabling absolute quantification of single-cell proteins leveraging constriction channel. Microfluid Nanofluid, 2021, 25, 30.

R. Ahmad, C. Kleineberg, V. Nasirimarekani, Yu-Jung Su, S. Goli Pozveh, A. Bae, K. Sundmarcher, E. Bodenschatz, I. Guido, T. Vidakovic-koch, and A. Gholami. Light-Powered Reactivation of Flagella and Contraction of Microtubule Networks: Toward Building an Artificial Cell. ACS Synth. Biol. 2021, XXXX, XXX, XXX-XXX,

T. E. Miller, T. Beneyton, T. Schwander, C. Diehl, M. Girault, R. McLean, T. Chotel, P. Claus, N. Socorro Cortina, J.-C. Baret, T. J. Erb. Light-powered CO2 fixation in a chloroplast mimic with natural and synthetic parts. Science, 2020, 368, 649.

C. S. Karamitros, M. Morvan, A. Vigne, J. Lim, P. Gruner, T. Beneyton, J. Vrignon, J-C. Baret. Bacterial Expression Systems for Enzymatic Activity in Droplet-Based Microfluidics. Anal. Chem. 2020, 92, 4908.

R. Menezes, A. Dramé-Maigné, V. Taly, Y. Rondelez, G. Gines. Streamlined digital bioassays with a 3D printed sample changer. Analyst, 2020, 145, 572. 8,

Y. Rondelez, G. Gines. Multiplex digital microRNA detection using cross-inhibitory DNA circuits. ACS Sens. 2020, 5, 8, 2430.

V. Bussiere, A. Vigne, A. Link, J. McGrath, A. Srivastav, J-C. Baret, T. Franke. High-Throughput Triggered Merging of Surfactant-Stabilized Droplet Pairs Using Traveling Surface Acoustic Waves. Anal. Chem. 2019, 91, 21, 13978.
