3-硝基鄰苯二甲酰亞胺(603-62-3)質(zhì)譜(MS)
InChI:InChI=1S/C8H4N2O4/c11-7-4-2-1-3-5(10(13)14)6(4)8(12)9-7/h1-3H,(H,9,11,12)
InChIKey: BONIIQYTWOPUQI-UHFFFAOYSA-N
Smiles:C1(=O)C2=C(C([N+]([O-])=O)=CC=C2)C(=O)N1
-

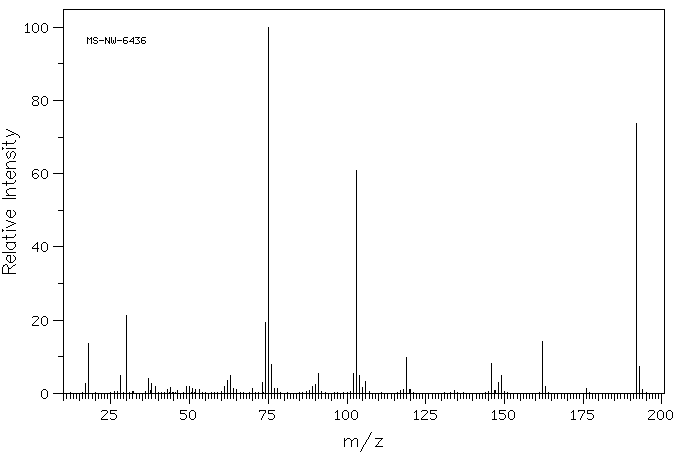

Mass
MS-NW-6436
3-nitrophthalimide
C8H4N2O4 (Mass of molecular ion: 192)
Source Temperature: 140 °C
Sample Temperature: 110 °C
Direct, 75 eV
17.0 2.7
18.0 13.6
28.0 4.9
30.0 21.3
37.0 4.1
38.0 2.7
39.0 2.0
43.0 1.1
44.0 1.5
49.0 1.9
50.0 2.0
51.0 1.2
52.0 1.0
53.0 1.0
61.0 2.0
62.0 3.6
63.0 5.0
64.0 1.4
65.0 1.1
70.0 1.4
73.0 2.9
74.0 19.4
75.0 100.0
76.0 7.8
77.0 1.2
78.0 1.4
89.0 1.9
90.0 2.5
91.0 5.4
102.0 5.4
103.0 60.8
104.0 4.9
105.0 1.7
106.0 3.2
118.0 1.0
119.0 9.9
120.0 1.0
146.0 8.2
148.0 3.1
149.0 4.9
162.0 14.2
163.0 1.9
176.0 1.3
192.0 73.8
193.0 7.4
194.0 1.0
