返回ChemicalBook首頁>CAS數(shù)據(jù)庫列表>542-02-9更多圖譜> 6-甲基-1,3,5-三嗪-2,4-二胺(542-02-9)紅外圖譜(IR2)

542-02-9

6-甲基-1,3,5-三嗪-2,4-二胺(542-02-9)紅外圖譜(IR2)

產(chǎn)品名稱:6-甲基-1,3,5-三嗪-2,4-二胺

CAS:542-02-9

分子式:C4H7N5

分子量: 125.13

InChI:InChI=1S/C4H7N5/c1-2-7-3(5)9-4(6)8-2/h1H3,(H4,5,6,7,8,9)

InChIKey: NJYZCEFQAIUHSD-UHFFFAOYSA-N

Smiles:N1=C(C)N=C(N)N=C1N

  • 圖譜

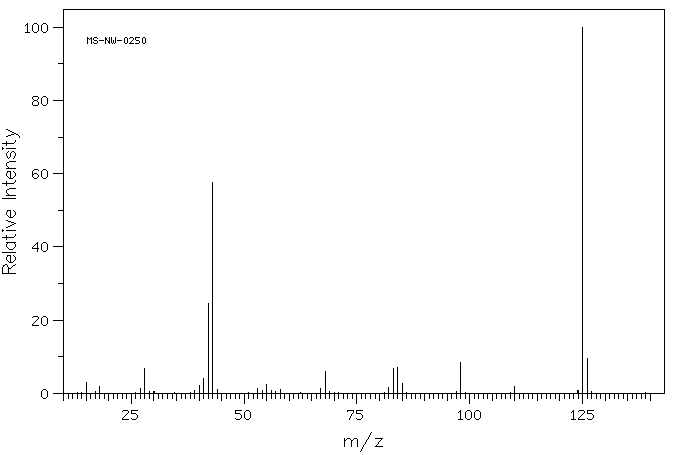

    Mass

    MS-NW-0250
6-methyl-1,3,5-triazine-2,4-diamine
C4H7N5              (Mass of molecular ion:    125)


       Source Temperature: 200 °C
   Sample Temperature:   0 °C
   Direct, 75 eV


          15.0       3.0
      18.0       1.8
      27.0       1.4
      28.0       6.8
      40.0       2.1
      41.0       4.0
      42.0      24.5
      43.0      57.5
      44.0       1.0
      53.0       1.4
      55.0       2.5
      58.0       1.1
      67.0       1.2
      68.0       6.0
      82.0       1.7
      83.0       6.9
      84.0       7.0
      85.0       2.7
      98.0       8.3
     110.0       2.0
     125.0     100.0
     126.0       9.6

400 MHz in DMSO-d6

90 MHz in DMSO-d6

  • 圖譜

    1H NMR 399.65 MHz
    C4 H7 N5 saturated in DMSO-d6
    6-methyl-1,3,5-triazine-2,4-diamine
    ChemicalStructure
        Assign.     Shift(ppm)

      A             6.6
      B             2.064


         Hz     ppm     Int.


       2651.86   6.636     38
    825.20   2.065   1000

  • 圖譜

    1H NMR 89.56 MHz
    C4 H7 N5 0.044 g : 0.5 ml DMSO-d6
    6-methyl-1,3,5-triazine-2,4-diamine
    ChemicalStructure
        Assign.     Shift(ppm)

      A             6.61
      B             2.066


         Hz     ppm     Int.


        591.58   6.606    236
    185.08   2.067   1000

in DMSO-d6

  • 圖譜

KBr disc

  • 圖譜

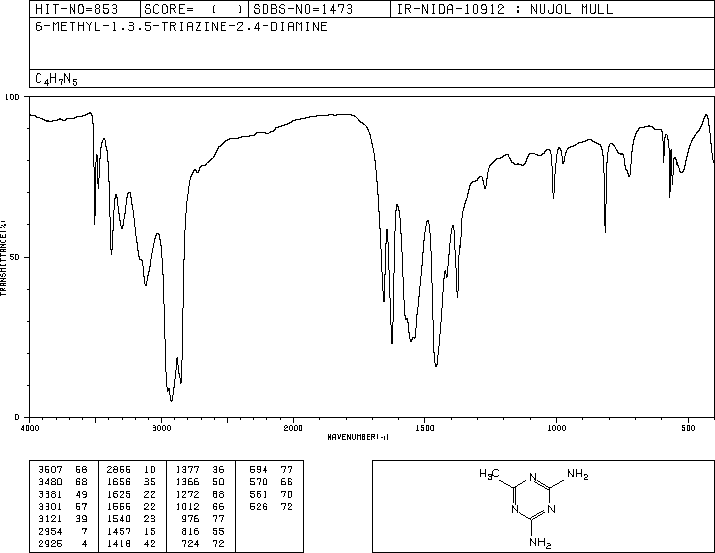

nujol mull

  • 圖譜

×
