ChemicalBook
English   Japanese   Germany   Korea

1795-01-3

3-乙基噻吩(1795-01-3)核磁圖(13CNMR)

產品名稱:3-乙基噻吩

CAS:1795-01-3

分子式:C6H8S

分子量: 112.19

InChI:InChI=1S/C6H8S/c1-2-6-3-4-7-5-6/h3-5H,2H2,1H3

InChIKey: SLDBAXYJAIRQMX-UHFFFAOYSA-N

Smiles:C1SC=CC=1CC

  • 圖譜
    Mass

    MS-NW-6623
3-ethylthiophene
C6H8S               (Mass of molecular ion:    112)


       Source Temperature: 260 °C
   Sample Temperature: 190 °C
   Reservoir, 75 eV


          27.0       3.5
      38.0       1.8
      39.0       7.6
      41.0       1.7
      45.0      15.0
      47.0       1.0
      50.0       2.1
      51.0       2.9
      53.0       6.0
      57.0       1.6
      58.0       3.1
      59.0       1.0
      63.0       1.2
      65.0       2.0
      67.0       2.0
      69.0       2.9
      70.0       1.0
      71.0       1.8
      77.0       3.7
      78.0       1.5
      81.0       1.0
      82.0       1.1
      84.0       3.8
      85.0       2.5
      97.0     100.0
      98.0       6.5
      99.0       4.7
     109.0       1.2
     111.0       8.4
     112.0      46.5
     113.0       4.0
     114.0       2.5

90 MHz in CDCl3

  • 圖譜

    1H NMR 89.56 MHz
    C6 H8 S 0.05 ml : 0.5 ml CDCl3
    3-ethylthiophene
    ChemicalStructure
        Assign.     Shift(ppm)

      A             7.185
      B             6.91
      C             6.89
      D             2.639
      E             1.223

     J(A,B)=4.9HZ
     J(A,C)=2.9HZ


         Hz     ppm     Int.


        647.88   7.235    137
    645.00   7.202    172
    643.00   7.180    209
    640.06   7.147    240
    622.31   6.949    179
    621.00   6.934    308
    619.25   6.915    182
    618.25   6.904    284
    616.94   6.889    300
    616.06   6.879    360
    614.38   6.860    160
    613.06   6.846     76
    247.75   2.767     86
    240.31   2.684    266
    237.19   2.649     38
    232.75   2.599    295
    225.19   2.515    115
    116.94   1.306    513
    109.56   1.224   1000
    101.88   1.138    398

in CDCl3

  • 圖譜

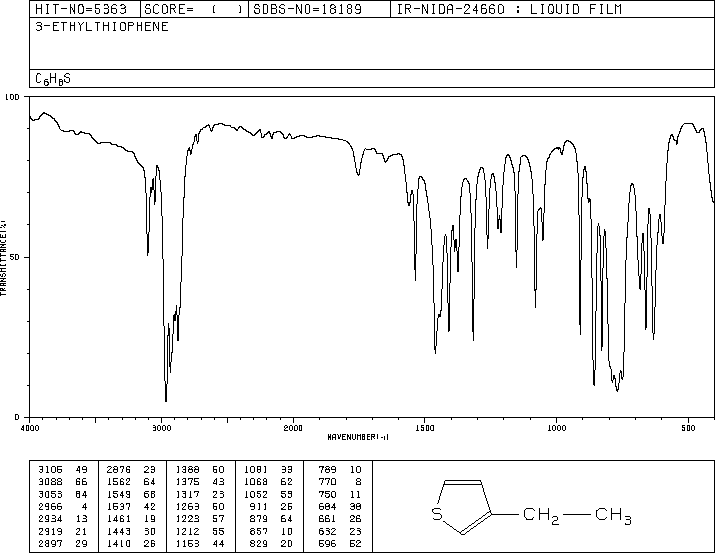

liquid film

  • 圖譜

×
