返回ChemicalBook首頁>CAS數(shù)據(jù)庫列表>1766-76-3更多圖譜> 十甲基苯氟酸酯(1766-76-3)核磁圖(1HNMR)

1766-76-3

十甲基苯氟酸酯(1766-76-3)核磁圖(1HNMR)

產(chǎn)品名稱:十甲基苯氟酸酯

CAS:1766-76-3

分子式:C13H2F10O

分子量: 364.14

InChI:InChI=1S/C13H2F10O/c14-3-1(4(15)8(19)11(22)7(3)18)13(24)2-5(16)9(20)12(23)10(21)6(2)17/h13,24H

InChIKey: WRLLBTKDSCJOBL-UHFFFAOYSA-N

Smiles:C1(C(F)=C(C(F)=C(F)C=1F)F)C(O)C1C(F)=C(C(F)=C(F)C=1F)F

  • 圖譜

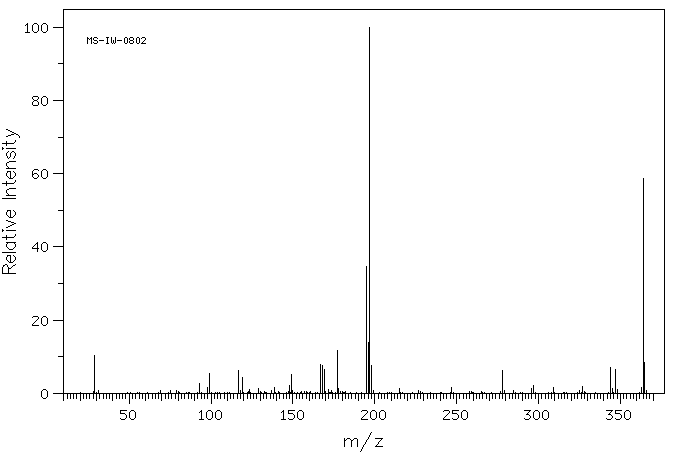

    Mass

    MS-IW-0802
bis(pentafluorophenyl)methanol
C13H2F10O           (Mass of molecular ion:    364)


       Source Temperature: 180 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV


          29.0      10.3
      93.0       2.6
      98.0       1.5
      99.0       5.4
     117.0       6.3
     119.0       4.4
     123.5       1.1
     129.0       1.2
     139.0       1.5
     148.0       2.2
     149.0       5.1
     167.0       7.9
     168.0       7.5
     169.0       6.6
     171.5       1.1
     177.0      11.6
     178.0       1.4
     195.0      34.6
     196.0      13.8
     197.0     100.0
     198.0       7.7
     215.0       1.3
     247.0       1.7
     278.0       6.3
     296.0       1.2
     297.0       2.2
     309.0       1.6
     327.0       1.9
     344.0       7.1
     345.0       1.3
     347.0       6.5
     348.0       1.1
     363.0       1.7
     364.0      58.7
     365.0       8.4

400 MHz in CDCl3

  • 圖譜

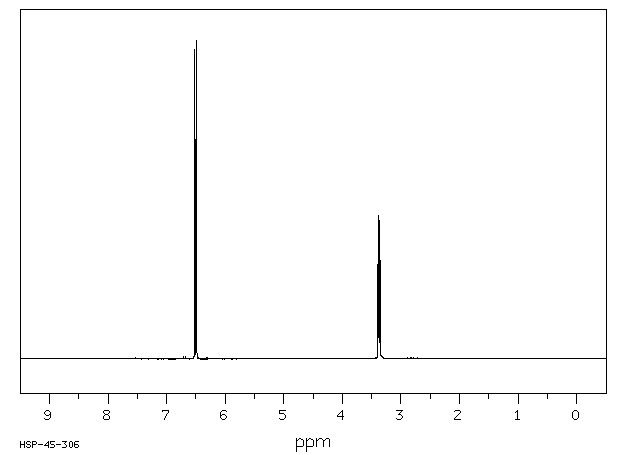

    1H NMR 399.65 MHz
    C13 H2 F10 O 0.039 g : 0.5 ml CDCl3
    bis(pentafluorophenyl)methanol
    ChemicalStructure
        Assign.     Shift(ppm)

      A             6.50
      B             3.371


         Hz     ppm     Int.


       2604.13   6.517    973
   2593.87   6.491   1000
   1356.81   3.395     86
   1354.74   3.390    302
   1352.66   3.385    449
   1350.59   3.380    316
   1348.51   3.375    103
   1346.56   3.370     92
   1344.48   3.365    293
   1342.41   3.359    434
   1340.33   3.354    309
   1338.26   3.349     99

KBr disc

  • 圖譜

nujol mull

  • 圖譜

×
