1203-24-3

N-(鄰氯苯基)馬來酸(1203-24-3)紅外圖譜(IR2)

產品名稱:N-(鄰氯苯基)馬來酸

CAS:1203-24-3

分子式:C10H6ClNO2

分子量: 207.61

InChI:InChI=1S/C10H6ClNO2/c11-7-3-1-2-4-8(7)12-9(13)5-6-10(12)14/h1-6H

InChIKey: KPQOXMCRYWDRSB-UHFFFAOYSA-N

Smiles:N1(C2=CC=CC=C2Cl)C(=O)C=CC1=O

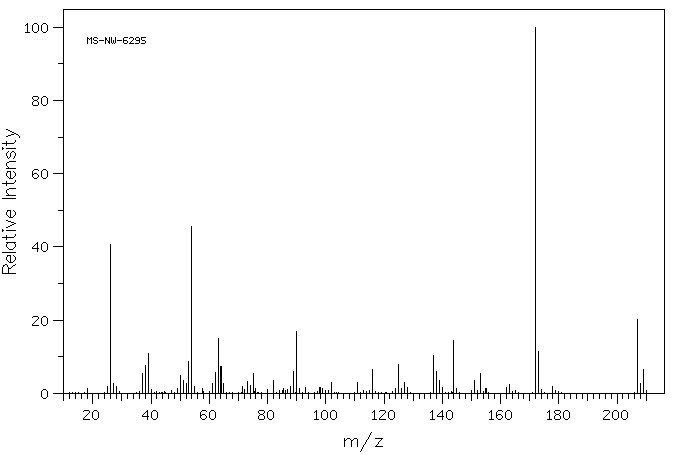

Mass

MS-NW-6295
N-(o-chlorophenyl)maleimide
C10H6ClNO2          (Mass of molecular ion:    207)

   Source Temperature: 130 °C
   Sample Temperature: 100 °C
   Direct, 75 eV

      18.0       1.2
      25.0       2.0
      26.0      40.7
      27.0       2.7
      28.0       1.9
      37.0       5.5
      38.0       7.6
      39.0      11.0
      40.0       1.1
      49.0       1.2
      50.0       4.8
      51.0       3.5
      52.0       2.7
      53.0       8.6
      54.0      45.5
      55.0       2.0
      57.5       1.4
      61.0       2.6
      62.0       5.7
      63.0      15.1
      64.0       7.4
      65.0       2.7
      71.5       1.8
      72.0       1.0
      73.0       3.2
      74.0       2.2
      75.0       5.4
      76.0       1.4
      80.0       1.0
      82.0       3.4
      85.5       1.3
      87.0       1.0
      88.0       1.8
      89.0       6.0
      90.0      16.9
      91.0       1.4
      93.0       1.5
      98.0       1.6
      99.0       1.2
     102.0       3.0
     111.0       3.0
     116.0       6.4
     124.0       1.3
     125.0       8.0
     126.0       1.3
     127.0       3.0
     128.0       1.5
     137.0      10.4
     138.0       6.0
     139.0       3.5
     140.0       1.7
     144.0      14.4
     145.0       1.2
     151.0       3.5
     153.0       5.5
     155.0       1.4
     162.0       1.6
     163.0       2.3
     172.0     100.0
     173.0      11.5
     174.0       1.0
     178.0       1.8
     207.0      20.3
     208.0       2.7
     209.0       6.4

400 MHz in CDCl3

¹H NMR	399.65 MHz
C₁₀ H₆ Cl N O₂	0.038 g : 0.5 ml CDCl₃
N-(o-chlorophenyl)maleimide

    Assign.     Shift(ppm)

      A             7.534
      B             7.39
      C             7.269
      D             6.879

     Hz     ppm     Int.

   3016.48   7.548     78
   3014.28   7.543     81
   3009.77   7.532     73
   3008.54   7.528     81
   3006.96   7.524    111
   2968.51   7.428     32
   2966.43   7.423     43
   2961.06   7.410    109
   2958.98   7.404    122
   2956.79   7.399     98
   2954.22   7.393    186
   2951.29   7.385    100
   2949.34   7.380    122
   2947.39   7.375    114
   2941.77   7.361     46
   2939.82   7.356     31
   2909.91   7.282    114
   2907.84   7.276     77
   2906.74   7.274     70
   2903.32   7.265    163
   2900.39   7.258     78
   2749.39   6.880   1000

in CDCl3
