1,1'-DIBENZYL-4,4'-BIPYRIDINIUM DICHLORIDE(1102-19-8) Raman

Product Name1,1'-DIBENZYL-4,4'-BIPYRIDINIUM DICHLORIDE

CAS 1102-19-8

Molecular FormulaC24H22Cl2N2

Molecular Weight409.35

InChIInChI=1S/C24H22N2.2ClH/c1-3-7-21(8-4-1)19-25-15-11-23(12-16-25)24-13-17-26(18-14-24)20-22-9-5-2-6-10-22;;/h1-18H,19-20H2;2*1H/q+2;;/p-2

InChIKey NLOIIDFMYPFJKP-UHFFFAOYSA-L

SmilesC1(C=C[N+](CC2C=CC=CC=2)=CC=1)C1C=C[N+](CC2C=CC=CC=2)=CC=1.[Cl-].[Cl-]

Request For Quotation

1,1'-DIBENZYL-4,4'-BIPYRIDINIUM DICHLORIDE(1102-19-8) Raman

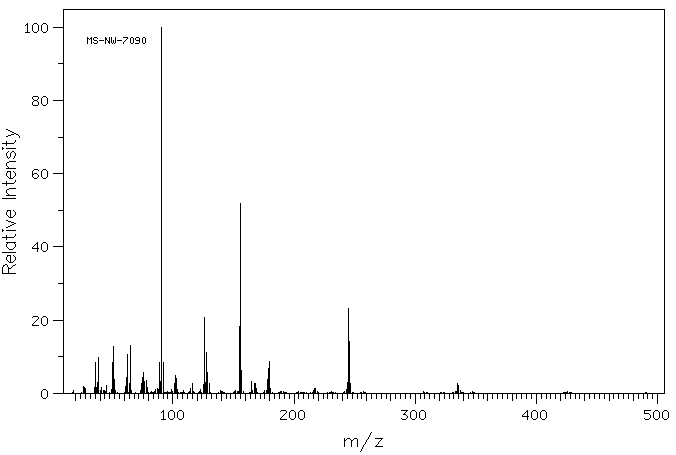

Mass

MS-NW-7090
benzyl viologen dichloride
C24H22Cl2N2         (Mass of molecular ion:    408)

   Source Temperature: 220 °C
   Sample Temperature: 200 °C
   Direct, 75 eV

      26.0       1.9
      27.0       1.7
      28.0       1.4
      35.0       1.6
      36.0       8.4
      37.0       1.5
      38.0       3.0
      39.0       9.8
      41.0       1.5
      45.0       2.1
      49.0       1.0
      50.0       8.5
      51.0      12.8
      52.0       3.7
      61.0       1.8
      62.0       4.3
      63.0      10.5
      64.0       2.7
      65.0      13.2
      74.0       2.7
      75.0       4.3
      76.0       5.8
      77.0       3.3
      78.0       3.5
      79.0       1.5
      86.0       1.0
      87.0       1.2
      88.0       1.0
      89.0       8.3
      90.0       3.2
      91.0     100.0
      92.0       8.4
      99.0       1.0
     101.0       2.7
     102.0       5.0
     103.0       4.0
     104.0       1.0
     115.0       1.3
     116.0       2.7
     122.5       1.1
     125.0       2.4
     126.0      20.6
     127.0       3.1
     128.0      11.2
     129.0       5.7
     130.0       2.8
     155.0      18.4
     156.0      51.8
     157.0       6.2
     165.0       3.2
     167.0       2.7
     168.0       2.7
     169.0       1.4
     178.0       3.9
     179.0       6.8
     180.0       8.7
     181.0       1.4
     217.0       1.2
     218.0       1.2
     243.0       1.1
     244.0       2.9
     245.0      23.2
     246.0      14.2
     247.0       2.8
     335.0       2.7
     336.0       2.1
