1,4-Bis(methoxymethyl)benzene(6770-38-3) 13C NMR
Product Name1,4-Bis(methoxymethyl)benzene
CAS6770-38-3
Molecular FormulaC10H14O2
Molecular Weight166.22
InChIInChI=1S/C10H14O2/c1-11-7-9-3-5-10(6-4-9)8-12-2/h3-6H,7-8H2,1-2H3
InChIKey DAJPMKAQEUGECW-UHFFFAOYSA-N
SmilesC1(COC)=CC=C(COC)C=C1
-

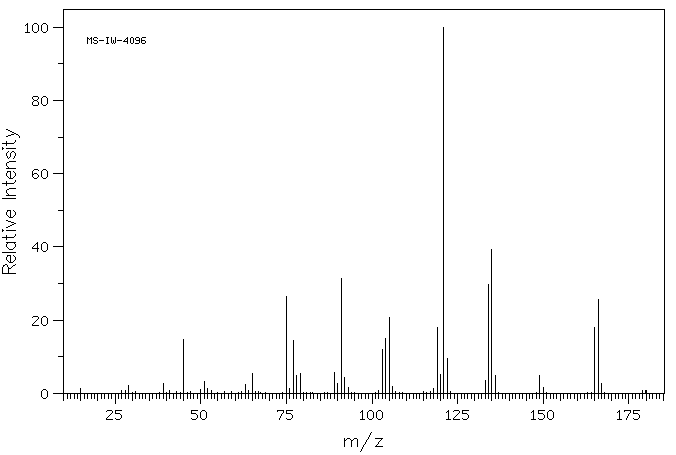

MassMS-IW-4096 p-bis(methoxymethyl)benzene C10H14O2 (Mass of molecular ion: 166)
Source Temperature: 230 °C Sample Temperature: 150 °C Reservoir, 75 eV
15.0 1.2 29.0 2.2 39.0 2.8 45.0 14.8 50.0 1.0 51.0 3.3 52.0 1.2 63.0 2.3 65.0 5.5 75.0 26.6 76.0 1.4 77.0 14.5 78.0 5.0 79.0 5.3 89.0 5.7 90.0 2.8 91.0 31.4 92.0 4.2 93.0 1.6 103.0 11.9 104.0 15.1 105.0 20.8 106.0 2.0 118.0 1.2 119.0 18.1 120.0 5.1 121.0 100.0 122.0 9.4 133.0 3.6 134.0 29.7 135.0 39.3 136.0 4.9 149.0 4.8 150.0 1.6 165.0 17.9 166.0 25.7 167.0 2.8
parameter in CDCl3
-
1H NMR 300 MHz C10 H14 O2 0.05 ml : 0.5 ml CDCl3 p-bis(methoxymethyl)benzene
Parameter ppm Hz
D(A) 7.306 D(B) 4.432 D(C) 3.356
Hz ppm Int.2191.79 7.306 667 1329.62 4.432 667 1006.79 3.356 1000
in CDCl3
liquid film
